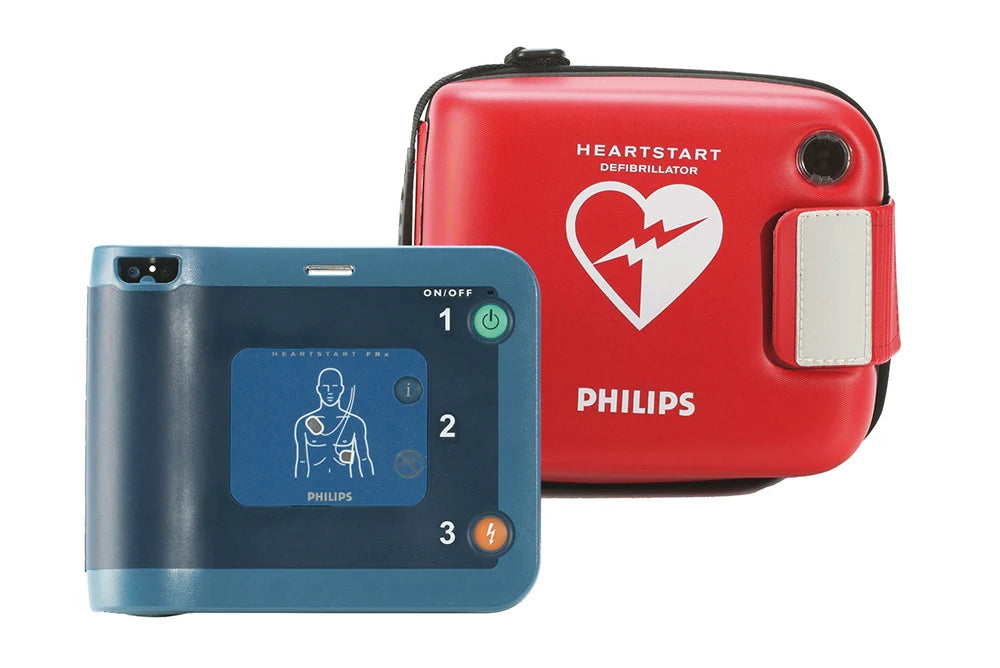

The HeartStart FRx is an easy to use, rugged and reliable AED for those who get there first. It incorporates a number of features to make sure it is ready when needed with a minimum of maintenance required.
Rugged.
Although most sudden cardiac arrests don’t happen in extreme environments some do. The HeartStart FRx is designed to work where rescuers may have to go to. In the rain, onboard aircraft, on metal surfaces or in industrial areas. (For details see:Technical data sheet) The FRx withstands jetting water, loads up to 250Kg and 1-metre drops to a concrete floor. It is also dust protected.
Reliable.
HeartStart FRx is built with the knowledge of an installed base of over 600,000 HeartStart AED’s (September 2009). In the years since 1997 and the introduction of Heartstart FR, the HeartStart family of AED products including also FR2 and HS1 has been sold in numbers second to none.
The continued performance through the years and the quality of these devices stand out in the AED industry. For many leading organisations around Australia HeartStart defibrillators are their AED of choice.
HeartStart FRx includes the features proven in the field by the HeartStart family and has important new improvements making the FRx the partner needed during the critical moments.
Ready.
Internal self testing is key to readiness in infrequently used products. HeartStart FRx incorporates daily, weekly and monthly self testing including a pads connection and integrity test to make sure everything functions when needed.
Virtually maintenance free.
Heartstart FRx requires no regular or contractual technical maintenance programs. All vital functions are tested in the internal self test program including full energy charge/discharge.
A brief visual inspection confirms whether the FRx is functional or not. The blinking green status indicator is the ”ready” signal confirming all is well. Otherwise the FRx will produce an audio signal to notify that inspection is required.
With the FRx in standby mode maintenance is simply visual inspection and replacement of consumables such as pads(every two years) and battery (every 4 years)

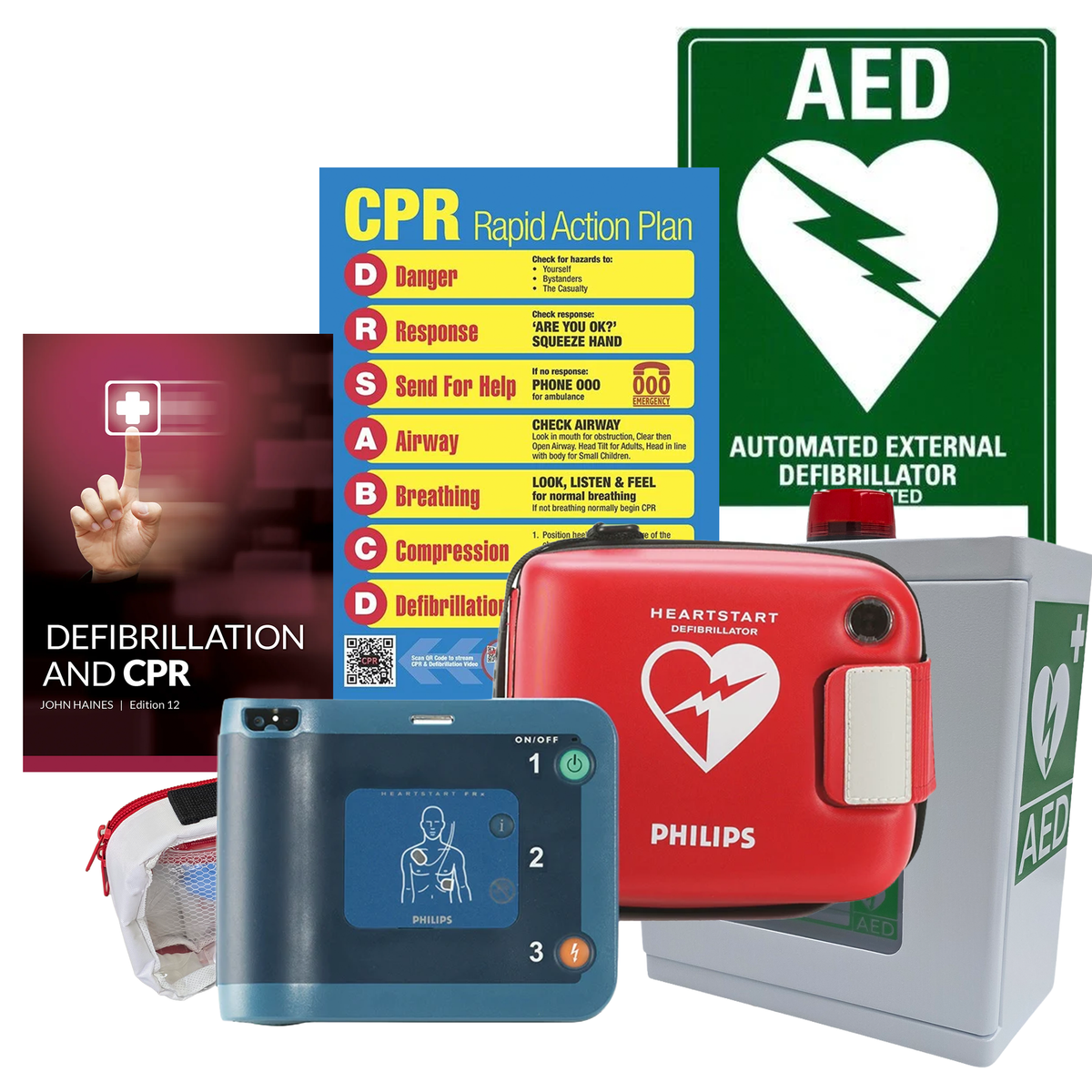

Package Includes.

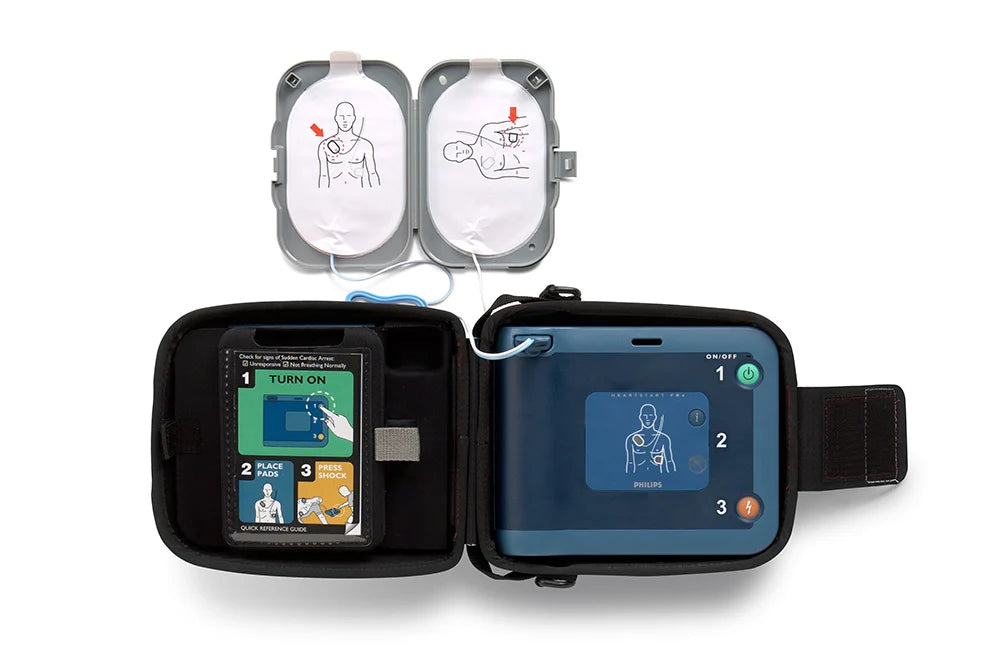

- HeartStart FRx AED,
- 8 Year Warranty,
- Adult Pads,
- 4 Year Battery,
- Case,
- AED Prep Kit & Carry Bag
- A4 CPR Rapid Action Plan
- A4 AED Location Sign
- Defibrillation & CPR Book
LivCor has developed a purpose-built Aluminium Indoor/Outdoor AED cabinet designed for use by businesses, workplaces, organisations, and facilities to securely house and manage their Automated External Defibrillator (AED)
A dedicated expiry-date sticker location on the front of the cabinet (supplied with every cabinet purchased), with the cabinet itself incorporating a printed guide/marking showing exactly where the sticker is to be positioned.
The indoor/outdoor cabinet provides dedicated, clearly identified areas for recording essential AED information, including:
-
AED serial number for equipment identification and asset tracking.
-
Battery installation date to assist with monitoring the battery's service life.
-
Battery expiry date to support timely replacement.
-
Adult electrode pad expiry date for monitoring pad replacement requirements.
-
Child electrode pad expiry date where applicable.
The integrated front sticker placement provides a consistent and easily visible location for expiry information, allowing personnel to quickly identify the relevant maintenance dates without having to open the cabinet.
This company-specific design combines AED accessibility, equipment identification, maintenance tracking, and visual consistency into a single purpose-built cabinet solution.
Give your AED a home in a prominent position in your business or club reception.

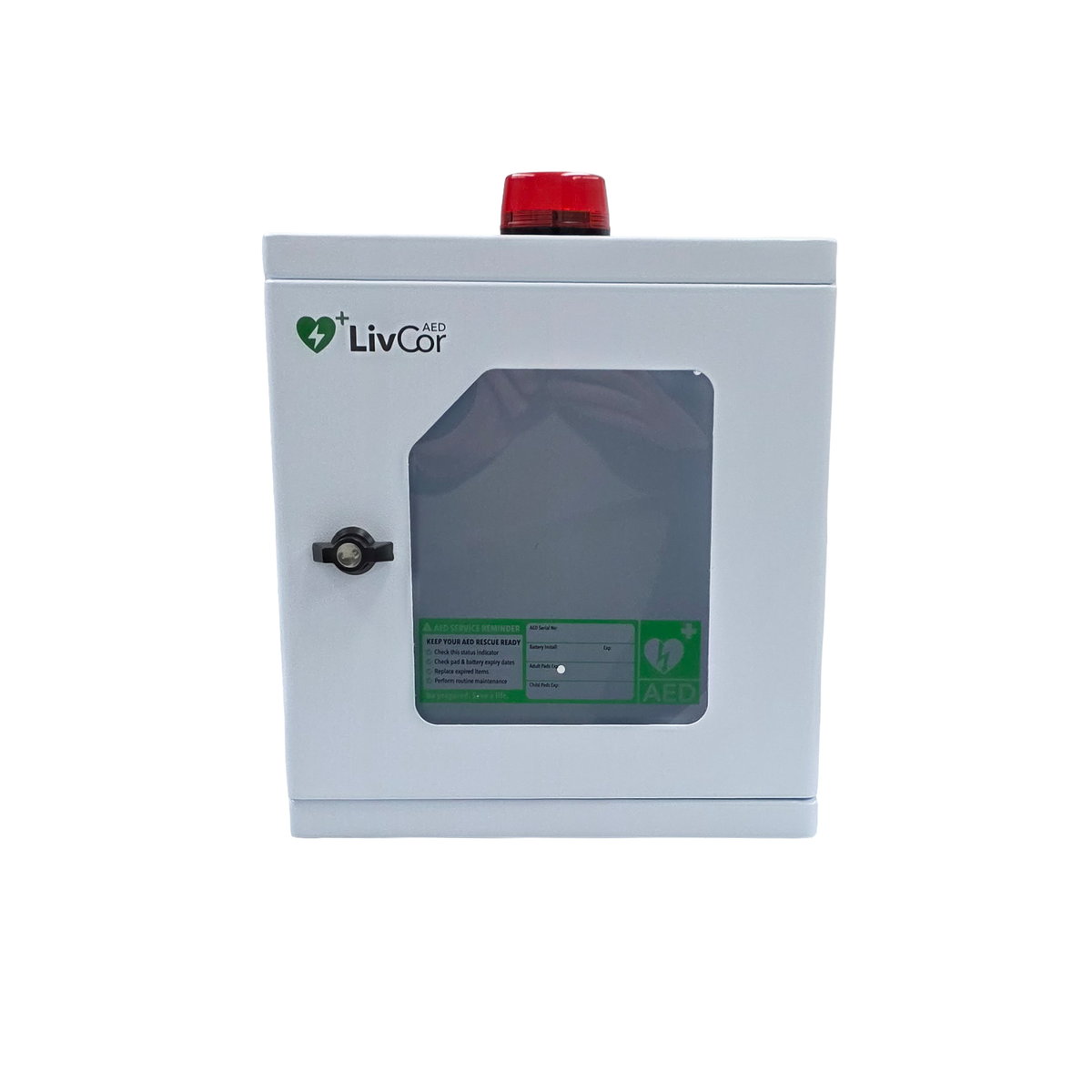

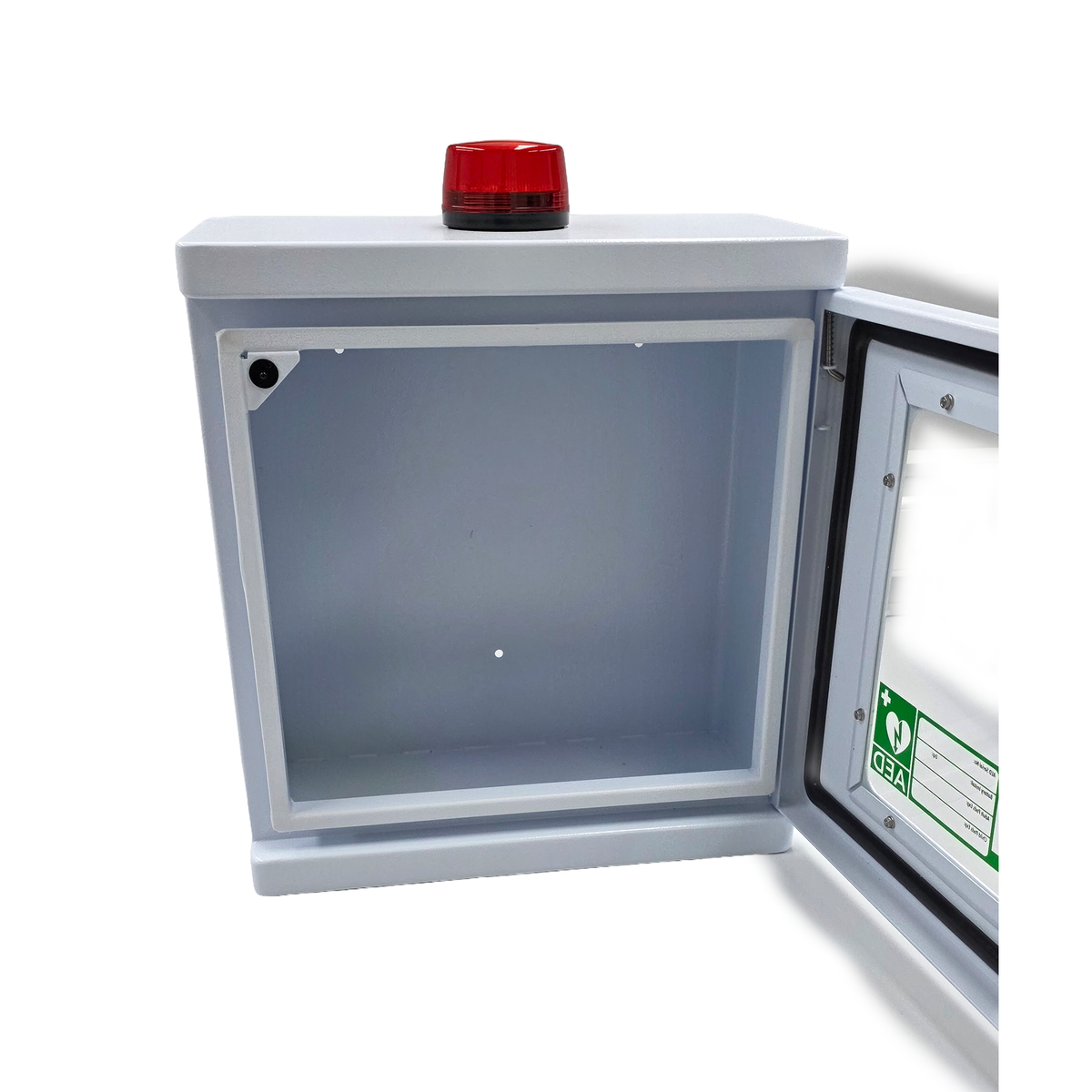

Aluminium, Wall Mounted Defibrillator (AED) Cabinet. White cabinet with green text and graphics.
- Aluminium construction with rounded corners for OH&S compliance.
- Suitable for indoor & outdoor applications
- IP55 Rating
- Keyed wing knob.

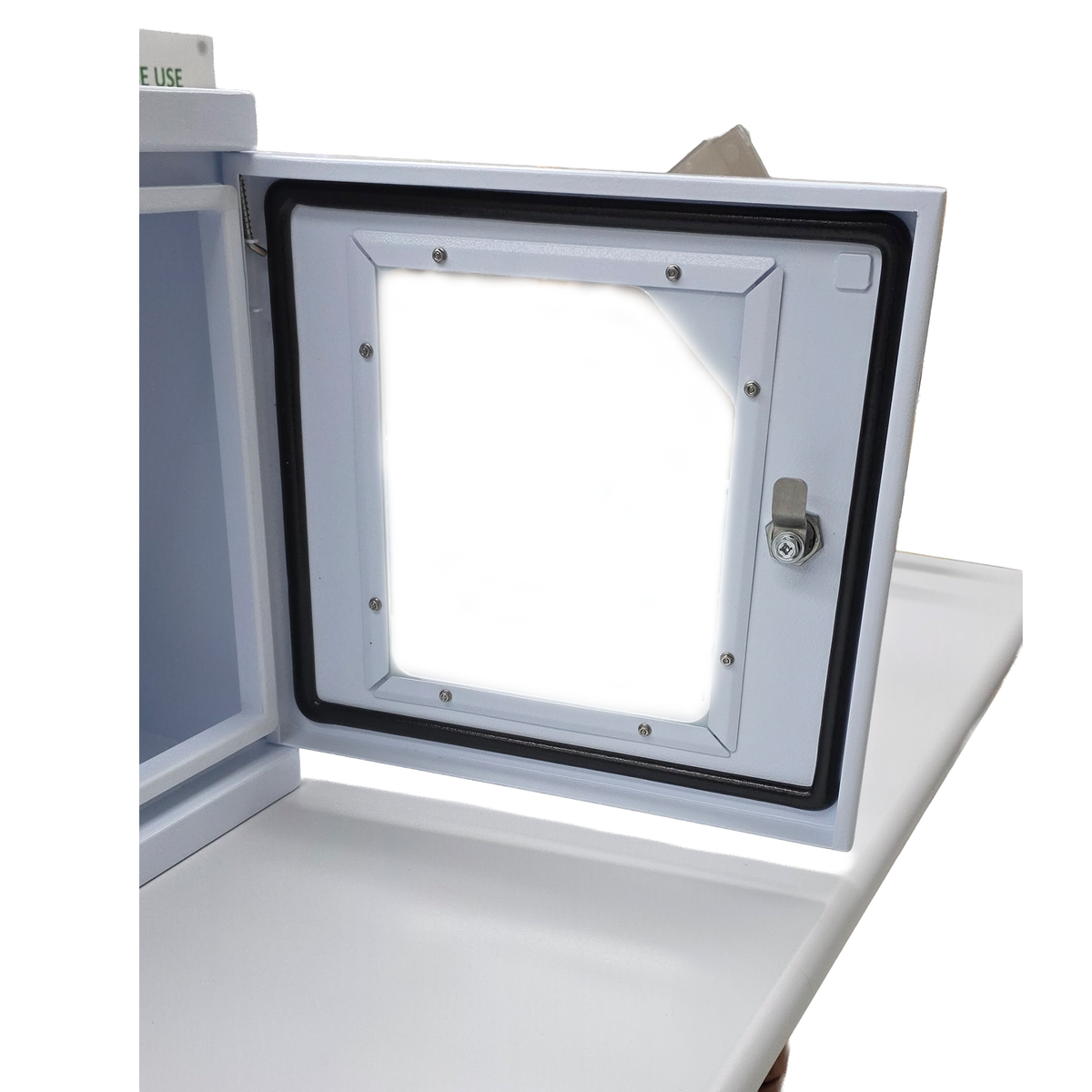

- Rubber seal on door
- Cabinet door can be locked, or left unlocked for access.
- 9V Battery powered audio alarm and strobe light which activates on door open.
- Plexiglass front window.
- Wall mountable with 4x screws (Pre-drilled mounting holes on back panel).
- (W) 35cm x (H) 38cm x (D) 18.5cm.
- Compatible with most AED models on the Australian market.
- Replacement stickers available through the website.
